HSM1-12Гибридный синхронный двигатель HSM1-12.18.13: 125 kW, 250 Nm
Производитель Brusa
The HSM1-12.18.13 is characterized by a high power density as well as by a constant power over a very high speed range. It can be produced in large quantities. Originating in large quantity production series HSM1-12.18.13 is fully validated and automotive-compliant.
The HSM1-12.18.13 is at the A-sample stage.
Characteristics
- Durable design:
fully validated and automotive-compliant - Originating from large quantity production series
- Exciting driving experience thanks to HSM topology
- Constant power across a wide speed range
- Excellent power density and overall efficiency
- Low torque-ripple and drag losses

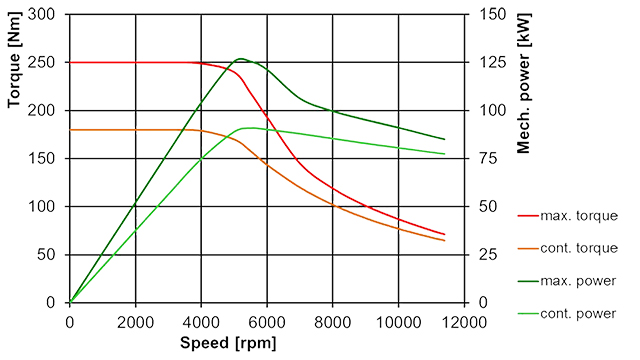

| With inverter DMC534 at 360 VDC | |
| Nominal speed | 4'800 rpm |
| Continuous torque | 180 Nm |
| Max. torque | 250 Nm |
| Continuous power | 90 kW |
| Max. power | 125 kW |
| Max. speed | 11'400 rpm |
| Efficiency | 96 % |
| Weight | 52.0 kg |

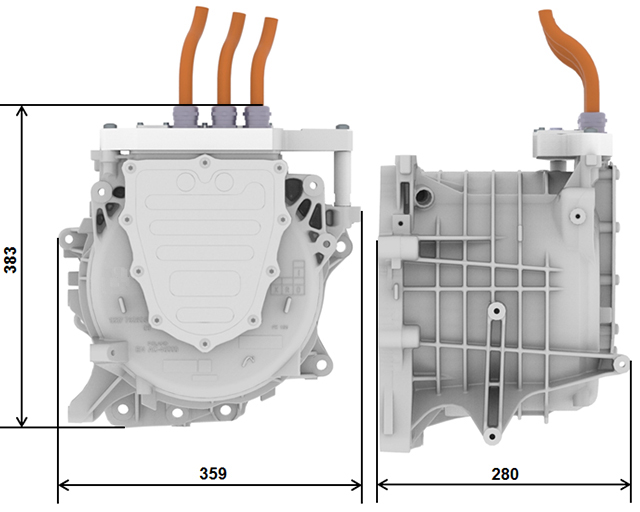

| Dimensions | 383 x 359 x 280 mm |
